| Back to H-G

Next to Thomson-Houston |

PERKINS

How To ID A Pre-1900 Perkins Company Socket

The Switch Contact TAB

There was only one Perkins patent for these different designs and variants. This same switch was used for both Westinghouse and Thomson-Houston base sockets. All of the Perkins switch designs use the contact "TAB" to make electrical contact when the key is turned to the ON position. Some designs use a spring under the lower contact as shown in the last picture above to your right and as shown in the original 1892 patent.
June 21 1892 Patent Date	The Perkins Rounded Key	The Perkins Key Hole (Later Sockets Only)

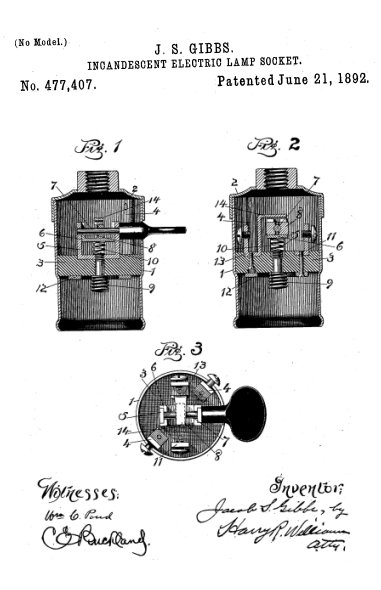

Most all Perkins shells were stamped with the June 21 1892 patent date. Patent No. 477,407	Perkins sockets of this era used this rounded key. Much earlier sockets used an ornate key.	Later Perkins shells used this cap and shell. The new key hole slid the key over when you closed the cap.

Perkins Cap Screw Posts

All Perkins shells used one of these two designs to hold the shell cap with exception to the last variant which was a two piece porcelain switch.

The June 21 1892 Perkins Patent Sockets
All of the socket designs shown below are from the same patent with minor changes and socket bases. These are listed from oldest to newest designs or variants. Keep in mind that as shown in the identification section above, that all of these sockets shells are stamped with the June 21 1892 patent date.
Socket No.1 (Westinghouse Base)

Notice that the shell and insulator is still close to the common shells of the era. This switch uses two posts for the shell cap screws.

The switch uses a spring under the bottom contact as shown in the picture above.	A view looking down into the standard Westinghouse prong base.

Socket No. 2 (Westinghouse Base)

Notice that the shell now has a new key hole and that the cap is now threaded into a cross bar design.	A view of the switch tab	Notice that the black insulator is now thicker.
Socket No. 3 (Thomson-Houston Base)

The cap and shell design remains the same.	The cross bar remains the same, but the tab is now a rounded design as shown on the top of the picture..	The ring is held by only one screw and the screws that hold the cross bar and a terminal screw are under the ring. The T-H center bulb contact threads into the bottom key bar and is held with a drop of solder.
Socket No. 4 (Thomson-Houston Base)

The shell has not changed, but the cap has. The screws now thread into the cap like a standard Westinghouse cap design.	A side view of the new cap design.	The basic switch design is unchanged.

The ring is unchanged and still held with one screw.	The cross bar has now been replaced with a porcelain top which is notched for the new cap to fit onto.	As like the other T-H switch, the bulb center contact threads into the center of the key holder base and then held with a drop of solder on the back side.

Miscellaneous Early Perkins Patents

Switch For Incandescent Lamps	Switch For Incandescent Electric Lamps	Incandescent Electric Lamp

Incandescent Electric Lamp And Switch	Electric Lamp And Switch	Electric Lamp And Socket

Electric-Lamp Switch	Socket For Incandescent Electric Lamps

| Back to H-G

Next to Thomson-Houston |
